When you’re finishing your basement walls, the space between drywall and concrete requires careful consideration to prevent moisture damage. Building science expert Mike Holmes suggests, “A proper moisture barrier is your foundation’s first line of defense.” You’ll need multiple layers of protection, including vapor barriers, insulation, and air gaps, to create a durable wall system. Understanding these essential components will determine whether your basement remains dry for decades or develops costly problems within months.

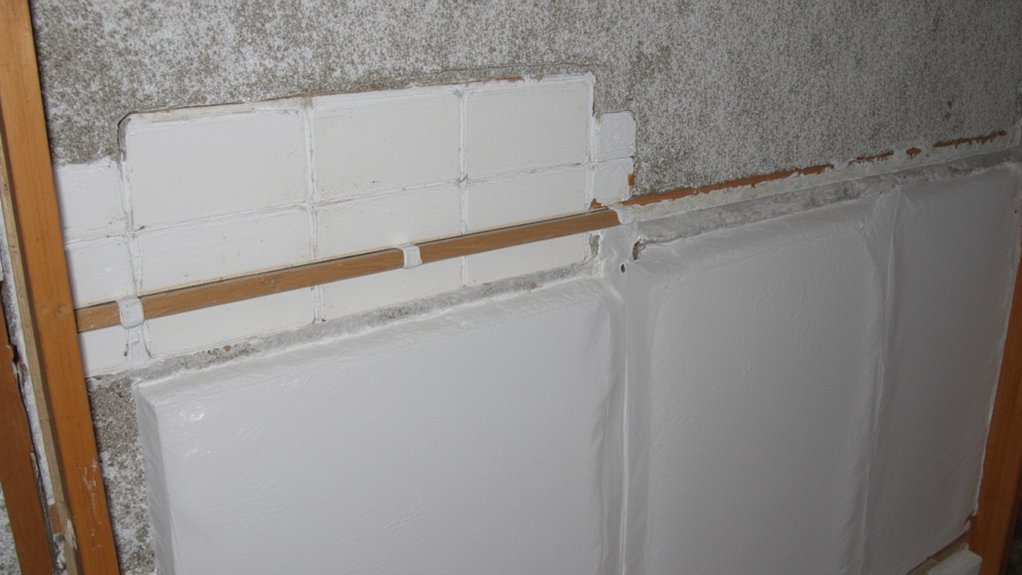

Understanding Moisture Control and Vapor Barriers
When you’re finishing a basement or concrete wall, moisture control becomes your top priority to prevent mold and water damage. You’ll need a proper vapor barrier system between the concrete and drywall to manage moisture effectively.
Key Components:
- 6-mil polyethylene sheeting as your primary vapor barrier
- Rigid foam insulation (minimum R-10 value)
- Furring strips or metal studs for air gap
“A continuous vapor barrier is essential to prevent condensation from forming between concrete and drywall,” explains Mark Thompson, certified building inspector. “Without it, you’re risking serious structural issues.”
Installation Tips:
- Test concrete moisture levels first (shouldn’t exceed 3%)
- Seal all seams with vapor barrier tape
- Overlap sheets by 6 inches minimum
- Run barrier from floor to ceiling without gaps

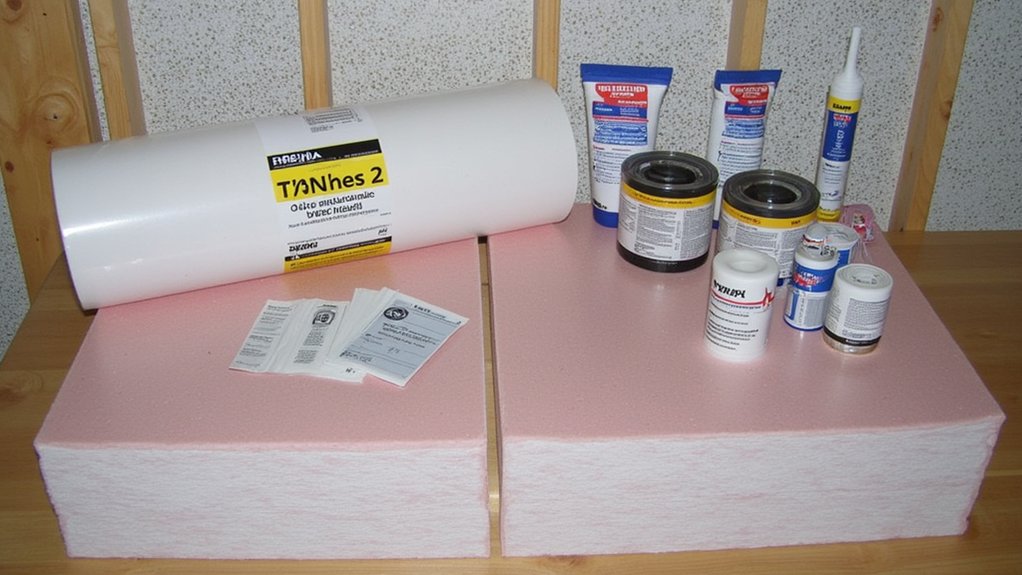

Essential Materials for Proper Wall Separation
To create an effective barrier between drywall and concrete, you’ll need several essential materials that work together as a complete system.
Key Materials Required:
- 6-mil polyethylene vapor barrier
- 2×4 pressure-treated lumber for bottom plates
- 1-inch rigid foam insulation boards
- Waterproof construction tape
- Concrete fasteners or masonry anchors
According to building expert Mike Holmes, “You’ll want a minimum R-value of R-5 in your insulation barrier to prevent thermal bridging.” The foam boards should extend from floor to ceiling, while the vapor barrier must overlap seams by 6 inches and be taped securely. Don’t forget to install pressure-treated lumber wherever wood contacts concrete – it’s essential for preventing rot and maintaining structural integrity.
Remember to check local building codes, as some regions require specific materials or R-values for basement finishing projects.

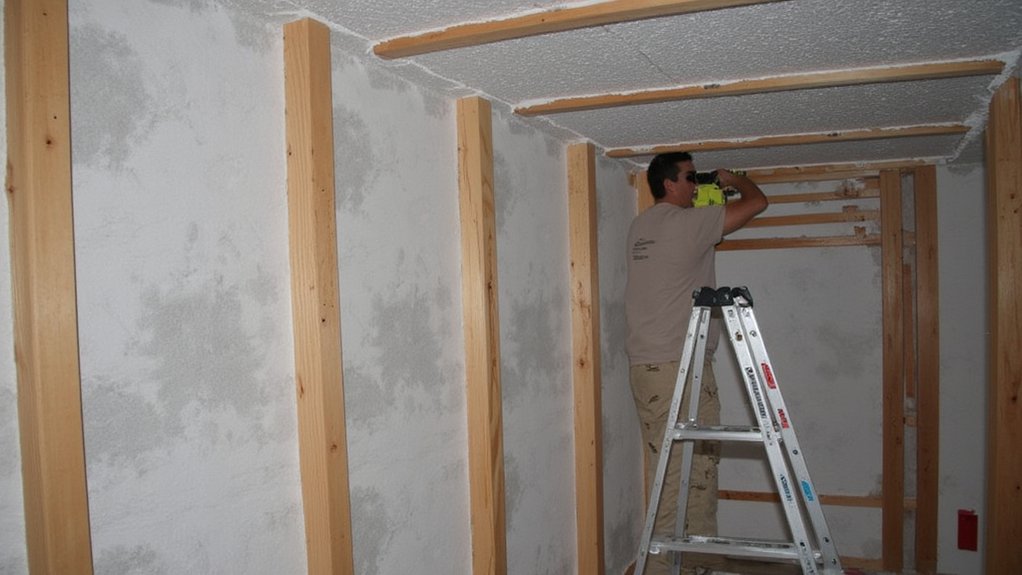

Installing Furring Strips and Air Gaps
The installation of furring strips creates the necessary air gap between your moisture barrier and the drywall surface. Choose 1×3 or 1×4 pressure-treated lumber strips and install them vertically at 16-inch intervals across your concrete wall.
To properly install furring strips:
- Mark your stud locations using a level and chalk line
- Pre-drill holes through the strips into the concrete
- Use 3-inch concrete screws or masonry anchors
- Leave a ¾-inch gap between the strip base and floor
“A consistent air gap of at least ½ inch is vital for proper ventilation and moisture control,” says building expert Mike Roberts. Remember to check each strip for plumb and shim where needed. This provides a solid mounting surface for your drywall while maintaining essential airflow behind the finished wall.
Insulation Options and R-Value Considerations
Since proper insulation plays an essential role in moisture control and energy efficiency, you’ll need to carefully select materials based on your climate zone and local building codes.
Common insulation options include:
- Rigid foam boards (R-5 per inch)
- Mineral wool batts (R-4 per inch)
- Spray foam (R-6 to R-7 per inch)
- Polyiso boards (R-6.5 per inch)
“For basement walls, we recommend a minimum R-value of R-15 in most climate zones,” says building scientist Mark Johnson. Select vapor-permeable options if you’re in a humid region to prevent moisture buildup.
Key considerations:
- Check local code requirements
- Measure wall temperature vs. dew point
- Account for thermal bridging
- Choose materials rated for below-grade use
- Consider cost per R-value ratio
Waterproofing Methods and Solutions
Proper waterproofing between drywall and concrete walls serves as your first line of defense against moisture intrusion and potential water damage. Start by applying a quality vapor barrier with a minimum 6-mil thickness to create an effective moisture seal.
Key waterproofing methods include:
- Installing dimpled membrane sheets against concrete before framing
- Applying waterproof coating or sealant directly to concrete surfaces
- Using specialized waterproof foam board insulation
“A properly installed vapor barrier can prevent up to 98% of moisture migration through concrete walls,” notes building scientist Mark Stevens.
For best results:
- Clean concrete surface thoroughly
- Repair any cracks or holes with hydraulic cement
- Apply waterproofing material from floor to ceiling
- Seal all seams and edges with waterproof tape
- Test for proper coverage before installing drywall
Best Practices for Basement Wall Applications
When installing drywall in basement spaces, you’ll need to maintain a minimum 1/2-inch gap between the bottom edge and concrete floor to prevent moisture wicking.
Key installation steps:
- Install 2×4 pressure-treated bottom plates using concrete anchors
- Apply foam sill gasket between concrete and bottom plate
- Attach 1-inch rigid foam insulation to concrete wall
- Install vapor barrier (6-mil polyethylene) over foam
- Space metal studs 16 inches on center
- Leave 1/2-inch clearance at floor and ceiling
“Always work from top to bottom when securing drywall panels,” says Tom Anderson, certified building inspector. “This guarantees proper weight distribution and prevents sagging.”
Remember to seal all joints with waterproof tape and compound, paying special attention to corners where moisture typically accumulates.
Professional Tips for Long-Term Protection
To protect your basement drywall installation for decades to come, you’ll need to implement several moisture-control strategies beyond the basic setup. “The key to long-term drywall success lies in creating multiple defensive barriers against water infiltration,” explains Sarah Martinez, licensed contractor with 20 years of moisture remediation experience.
Key protective measures:
- Apply two coats of waterproof masonry sealer to concrete walls
- Install 6-mil polyethylene vapor barrier with 12-inch overlapped seams
- Use pressure-treated lumber for bottom plates
- Add crystalline waterproofing admixture to concrete surfaces
- Install a dehumidifier rated for your basement’s square footage
“Check your vapor barrier seams every 5 years and maintain indoor humidity levels between 30-50%,” advises Martinez. “Don’t forget to inspect your exterior drainage systems annually to prevent moisture issues before they start.”
